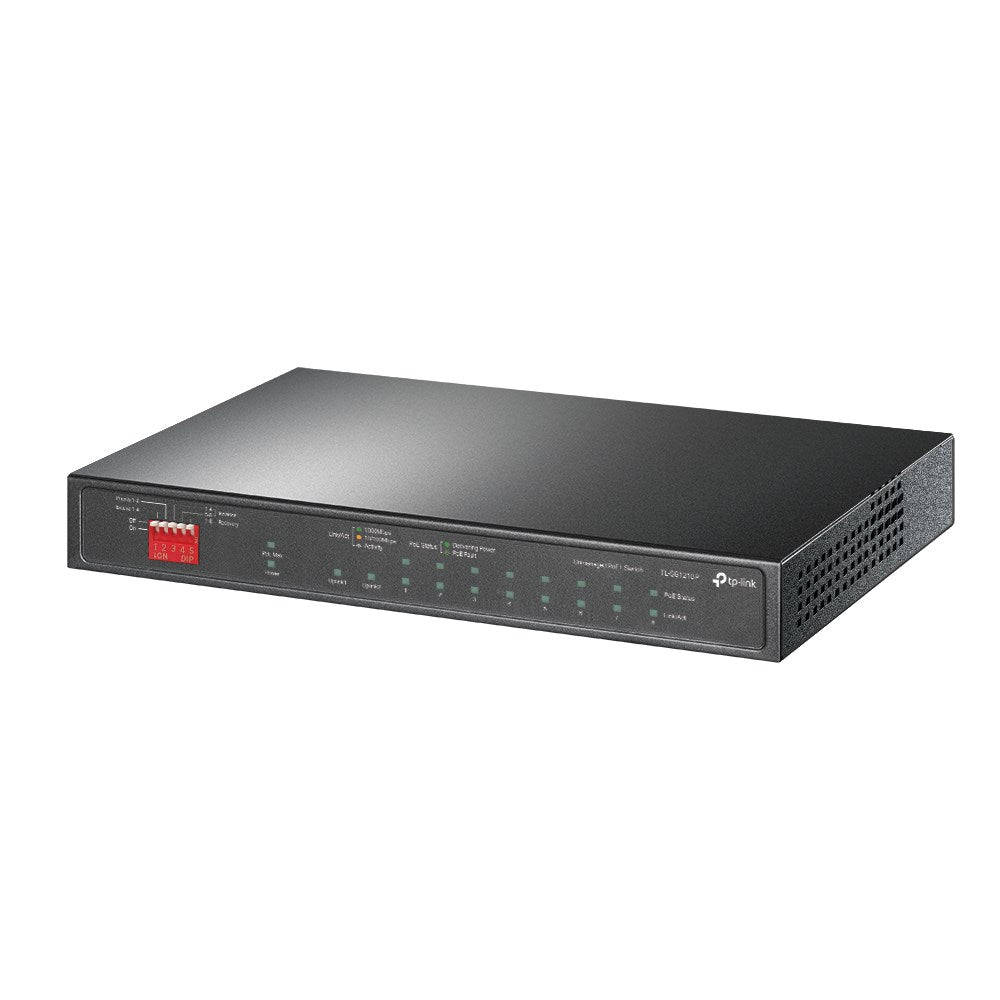

TP-LINK SWITCH 10 PORT GIGA WITH 8PORT POE 63W TP LINK

TP-LINK SWITCH 10 PORT GIGA WITH 8PORT POE 63W TP LINK.

9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port With 8 PoE+ ports, transfers data and power on one single cable Works with IEEE 802.3af/at compliant PDs and expands office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports Up to 250 m data and power transmission range under Extend Mode ** Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications Isolation Mode allows one-click client traffic separation for higher security and performance Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery Easy to use, with no configuration and installation needed

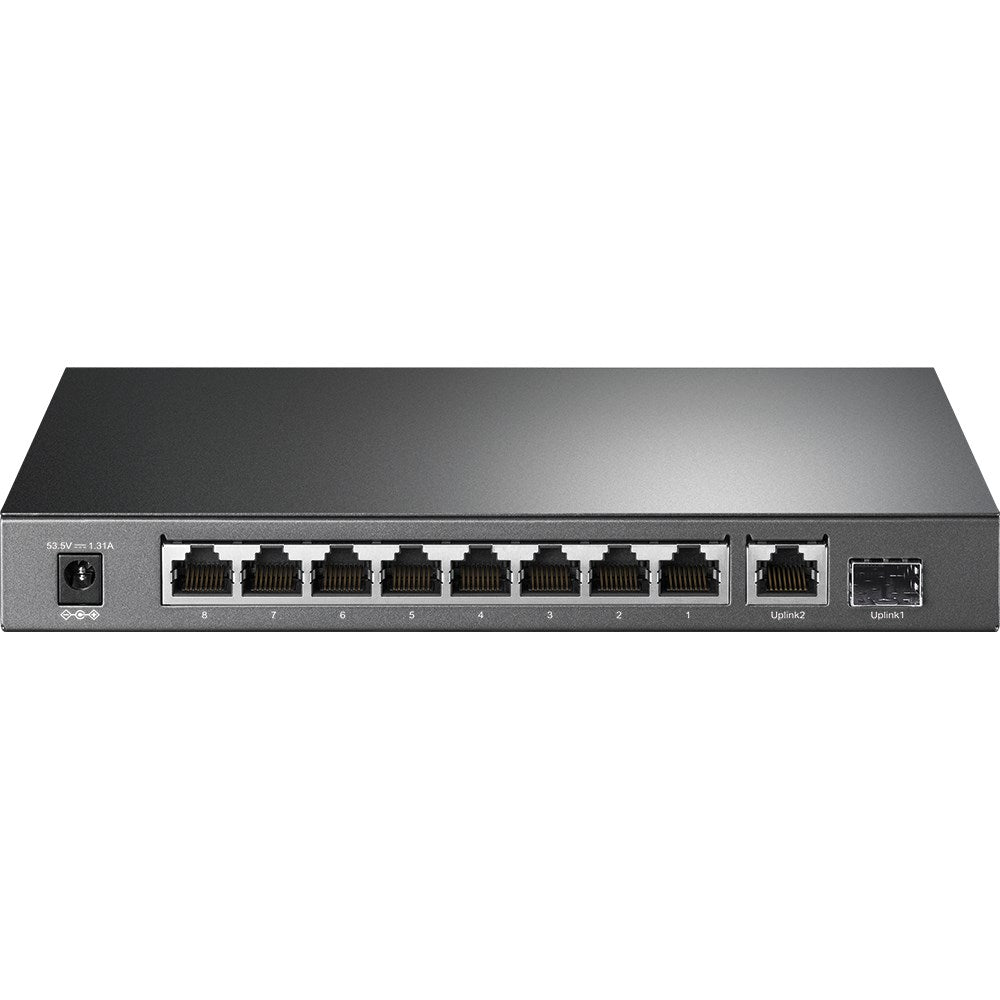

HARDWARE FEATURES Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports

1 10/100/1000Mbps RJ45 Port

1 Gigabit SFP Slot Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF Fan Quantity Fanless Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) Packet Forwarding Rate 14.88 Mpps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant

PoE Ports: Port1- Port 8

PoE Power Budget: 63W Mac Address Table 4K Jumbo Frame 16 KB Switching Capacity 20 Gbps Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption 7.0 W (220/50Hz. no PD connected)

77.24 W (220/50Hz. with 63W PD connected) Max Heat Dissipation 23.87 BTU/h (no PD connected)

263.39 BTU/h (with 63W PD connected) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs

EEE802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

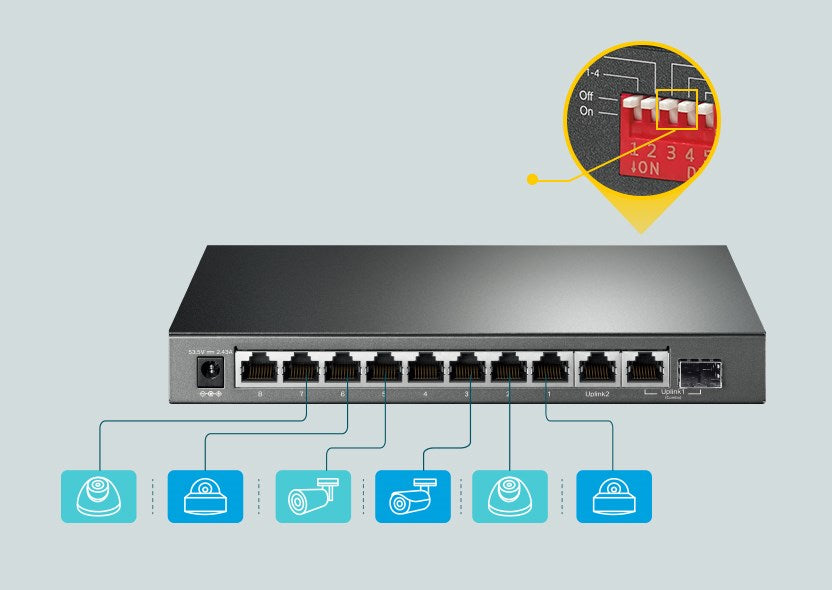

Priority Mode Button (Ports 1–2)

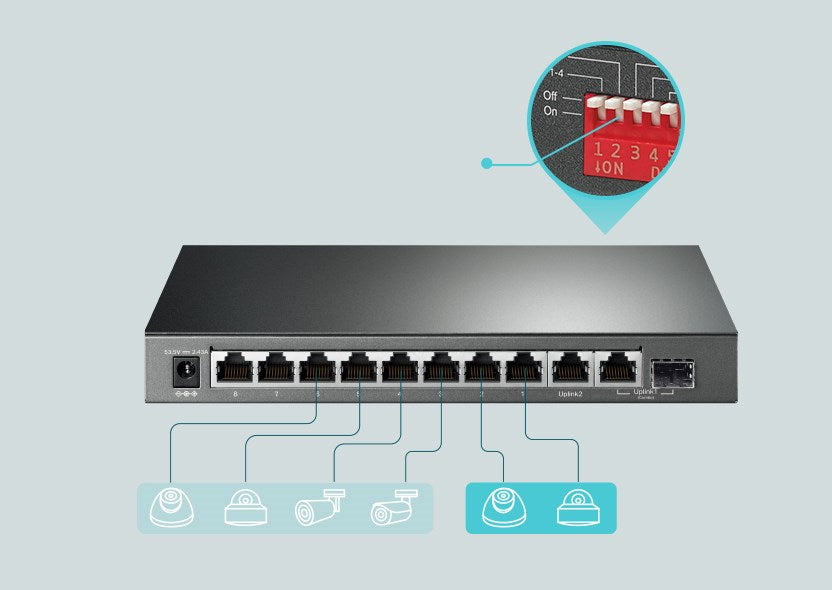

Isolation Mode Button (Ports 1–4 / 5-8)

PoE Auto Recovery (Ports 1-8) Transmission Method Store-And-Forward OTHERS Certification CE, FCC, RoHS Package Contents TL-SG1210P, Power Adapter, Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
