TP-LINK

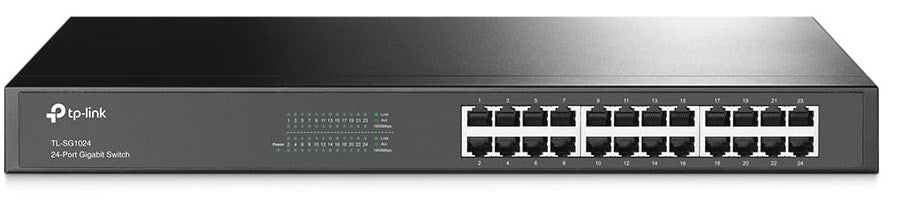

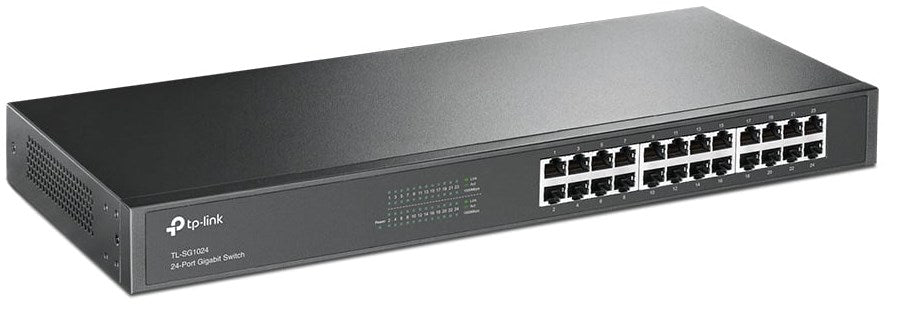

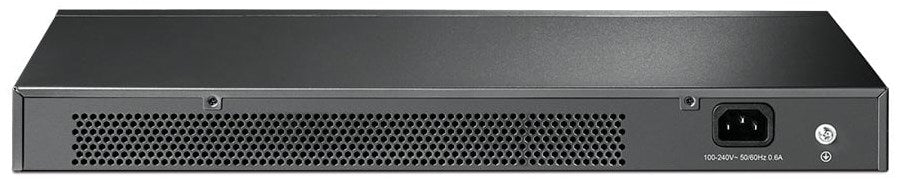

TP-LINK SWITCH 24PORT 10 - 100 - 1000 TP-LINK
TP-LINK SWITCH 24PORT 10 - 100 - 1000 TP-LINK
לא ניתן לטעון זמינות איסוף
TP-LINK SWITCH 24PORT 10 - 100 - 1000 TP-LINK.
מפרט טכני
| manufacturer_name | TP-LINK |
|---|---|
| manufacturer_part_number | TL-SG1024 |
| part_number | 11065 |
| warranty_in_month | 36 |
| category_name | Switches |
| tie_id | 614 |
| Type | switch |
| Model | TP-Link TL-SG1024 |
| Equipment | power cable, power adapter, documentation, kit for mounting |
| Country of origin | China |
| Depth | 140 |
| Width | 440 |
| Height | 44 |
| Power consumption | 13.6 |
| Basic data transfer rate | 1000 Mbit/sec, 100 Mbit/sec |
| Total number of switch ports | 24 |
| Number of ports 100 Mbit/sec | 24 |
| Number of ports 1 Gbit/sec | 24 |
| Number of ports 10 Gbit/sec | לא |
| PoE support | לא |
| Number of PoE ports | לא |
| Internal bandwidth | 48 |
| Package service speed | 35.7 |
| Packet buffer | 4 |
| Standards support | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.3x, IEEE 802.1p, IEEE 802.3z |
| Operating temperature | off 0°C up to +40°C |
| Working humidity | off 5% up to 90%, non-condensing |
| Power supply type and voltage | 100-240VAC, 50/60Hz |
| Number of SFP ports | לא |
| console port | לא |
| indicators | Power, activity, speed |
| QoS prioritization | כן |
| Flash memory | 1 |
| Is Managed | לא |
| Switching method | store and forward |
| Switch layer | L2 |
| Placement | rack mounted |
| Number of ports 2.5 Gbit/sec | לא |
| datasheet_url | https://grandadvance.co.il/reports/print/?go=product&product_id=28204 |
24 10/100/1000Mbps RJ45 ports Innovative energy-efficient technology saves power consumption Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case Isolation Mode allows one-click client traffic separation for higher security and performance Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping Plug and Play Rack-mountable HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes Power Supply 100-240VAC, 50/60Hz Dimensions ( W x D x H ) 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm) Mounting Rack-Mountable Max Power Consumption 13.62W Max Heat Dissipation 46.44BTU/h PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Advanced Functions • Isolation Mode: Ports 1-22 • Loop Prevention: Ports 1-24 Jumbo Frame 10KB QoS 802.1p/DSCP QoS* *Only for V11 and later version Green Technology Yes Transfer Method Store-and-Forward OTHERS Certification FCC, CE, RoHS Package Contents 24-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
